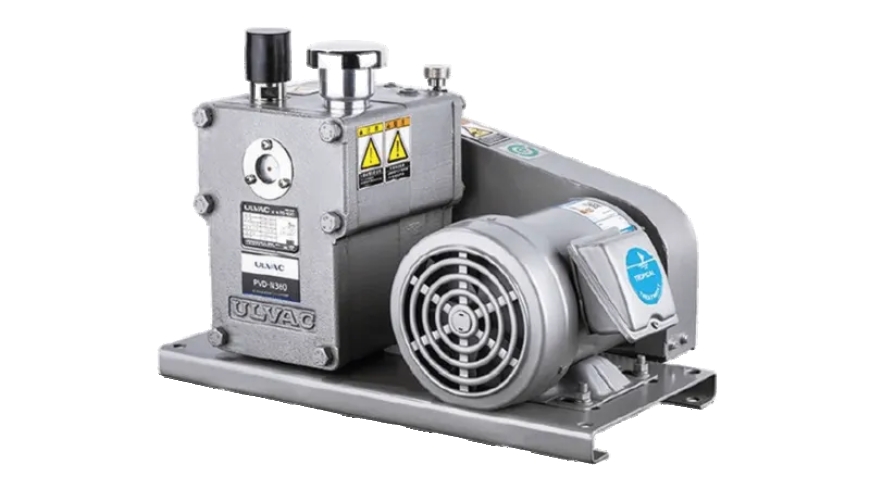

Rotary Vane Vacuum Pumps: Improving Industrial Efficiency with Reliable Vacuum Technology

One of the most universally used equipment in the industry, across manufacturing, packaging, pharmaceutical, as well as chemical production is a vacuum system. Rotery vane vacuum pumps are among the most trusted vacuum systems available today. Their straight forward design, proven reliability and long life make them especially attractive to the industry. Their ability to create a reliable and steady vacuum make them ideal for a wide application base including continuous and intermittent industrial processes.

Courtney & Nye provides high-end vacuum equipment to accommodate diverse industrial needs, balancing quality engineering with reliable operation to help increase productivity and minimize downtime. Vacuum systems are often integrated with the fin and plate heat exchanger within the process to ensure a stable thermal environment is achieved in the plant.

Understanding Rotary Vane Vacuum Pumps

Rotary Vane vacuum pumps are positive displacement pumps that extract air or gases from a sealed chamber to leave a vacuum. They work by means of a rotating components in which sliding vanes shift the volume within the pump at all times.

While the rotor revolves, air is induced into the expanding chambers, compressed and then exhausted through the outlet. This cycle then creates a reliable vacuum ideal for many industrial works.

The simple mechanical construction of these pumps is responsible for their high reliability, making them the world’s most popular form of vacuum technology.

Because of their size, the design of these batteries makes it possible to install them in places where space availability is limited.

How Rotary Vane Vacuum Pumps Work

Within the pump housing, the eccentric rotor rotates while the movable vanes move outwards against the walls of the chamber. The volume of the chambers changes as the rotor turns and these changes facilitate the suction and compression.

The chamber volume builds and gas is drawn in by the pump during intake, When the pump continues to rotate, the chamber slowly begins to reduce the size of the chamber, forcing the gas out through the discharge port.

Specially designed oil systems are used in lubricated models. They help sealing, decrease internal attrition, and increase the experience of a vacuum. In the approach dry-running the mechanism, the oil near the compression chamber is removed, for its use in contamination-sensitive services.

This efficient operating principle is reliable over a long operating time:

Major Benefits of Rotary Vane Vacuum Pumps

A key benefit of rotary vane technology is the ability to maintain stable and consistent vacuum levels over long periods of continuous industrial use.

Its compact size, simple mounting and easy installation allows it to fit comfortably into production sites already in operation.

Maintenance is relatively simple, thus reduction of service complexity with down time and human resources.

Similarly, the operation of these pumps is relatively quiet.

Energy-efficient design allows the reduced energy use whicle still being a high productivity plant.

Because of their range of capabilities, these species can cater for many different plant process needs. They provide a wise financial investment for the industrial processes of the future.

Courtney & Nye – Provides reliable vacuum solutions in order to meet operational excellence.

Industrial Applications

Rotary vane vacuum pumps are commonly employed in many areas that require the use of a controlled vacuum.

• In the packaging industries, vacuum is used to maintain the freshness of the products.
• In printing, sheets and substrate are manipulated using vacuum systems.
• Vacuum generation is required in chemical or pharmaceutical research laboratories. Sterilization and various analytical methods are catalyzed by vacuum.
• Vacuum equipment is used extensively in woodworking machineries for CNC machining, panel handling etc.
• Vacuum systems are essential for plastic thermoforming operations in order to produce accurate product shapes.
• Special processes may require electronics manufacturers to operate within a controlled vacuum environment during the manufacturing processes.

Wide application range also shows the versatility and robustness of current rotary vane technology.

The Importance of Cooling and Thermal Management

In practical use, the industrial vacuum technology produces heat which must be handled with care.

Over temperature can cause damage to internal parts. Also, the lubricant lose its properties at high temperature.

Cooling is offered in many installations, both to enable general operating conditions, and to encourage efficiency and reliability.

The fin and plate heat exchanger is one of many solutions which can enable successful thermal management by providing the highest heat transfer rate available in a small sized device through careful built up of surface features.

A well-balanced cooling strategy combined with a proven vacuum instrument can offer both stable long-term operation to the metrology group and minimized maintenance expense.

Courtney & Nye raises an important point about the necessity to deploy vacuum and thermal management solutions in complete industrial applications.

Maintenance Best Practices

The use of preventive maintenance is also imperative to hold consistent performance of vacuum pumps.

• Frequent oil change also aids in sealing efficiency and power loss minimization in lubricated models.
• Air filters should be checked and changed, from time to time, in order to prevent pollution to suck into the pump.
• Monitoring vacuum readings can warn of possible performance problems, before adjustment is needed.
• Regular inspection of vanes, seals and bearings can help detect wear early and prevent a breakdown.
• Cleaning the passages for the cooling and well ventilation will maximize the performance.

By carrying out scheduled maintenance programs, it reduces unscheduled standstills, and ensures valuable production assets.

Energy Efficiency and Sustainability

Contemporary industrial facilities prefer equipment which increases efficiency while combating the environment.

Rotary vane Vacuum pump are one of the contributing technologies for achieving above goals due to its design improvements and energy efficiency.

The capacity of the pump can be adjusted to the requirements of production through the use of sophisticated control systems. This reduces unnecessary electricity consumption.

• Reduces energy costs and has an reduces Impact on the environment.

Consistent vacuum creation leads to more consistent products along with less waste and greener production methods.

Companies that can effectively invest in vacuum technology generally prove results in cost-saving and resource-saving.

Courtney & Nye continues to solve the need for solutions to meet changing sustainability directives adopted by industry.

Selecting the Right Vacuum Pump

When selecting the right pump for an application the need to review the specifications of the application in detail.

The equipment is chosen based on the conditions such as the required vacuum, type of gas, hours of operation, conditions of environment, space for installation and maintenance.

Specialmanufacture for corrosive gases might be necessary for some industries. However, whenever a continuous-duty application is desirable, then a warranty-cycle-optimized design should be used.

Consideration should also be given to the prospect of future production growth.

A professional engineer can assist in the equipment selection process and help a company implement a stable long-term vacuum solution that allows for operational growth.

Future Trends in Vacuum Technology

Vacuum technology remains on a path of continual progress by innovative digital technology and engineering methodologies.

• Smart monitoring systems: Provide immediate operating data to facilitate predictive maintenance and early fault detection.
• Advanced materials; increase in toughness, and longer service intervals.
• Energy-efficient motor and intelligent control systems are further reducing operating costs.
• Sometimes they also come with automation, which enables vacuum equipment to be integrated in a centralized system that monitors the whole plant.

All of these developments guarantee the floor for rotary vane vacuum pumps for years to come as a indispensable part of high-tech production systems.

Conclusion

Reliable vacuum generation for many industrial processes is still provided by vane type rotary vacuum pumps. Their established mode of operation, high efficiency, small size and economics have established them as a useful tool to help boost productivity and reduce costs.

By using state-of-the-art technology like the fin and plate heat exchanger, an industrial plant is able to develop a comprehensive, well-designed system that minimizes energy consumption, optimizes performance, and increases equipment life. Courtney & Nye is committed to delivering top of the line products and services to help industry operate at its best for the long term.
